Postby culturejam » 14 Mar 2008, 05:39

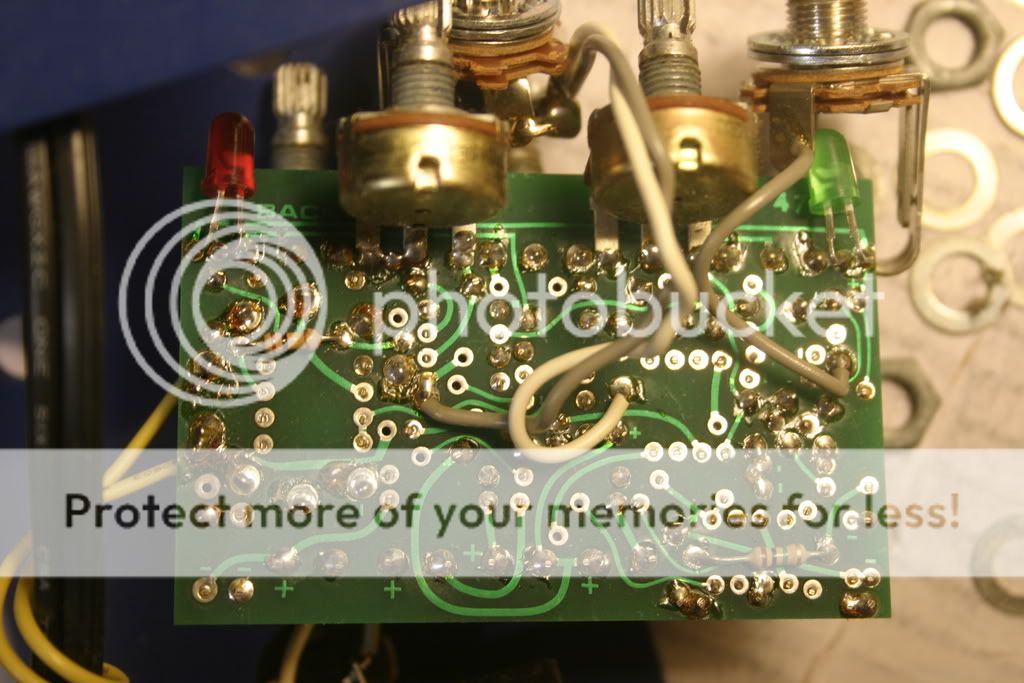

Here are some gut shots of my TubeWorks Bluetube pedal.

Some notes:

* the two ICs are Ti TL072
* the two FETs are labeled J112
* all the caps are rated for 16v
* the transformer has no discernible identifying marks
* there are no SMD components

Here we go with clickable thumbs:






User avatar
culturejam
Old Solderhand

Posts: 4262
Joined: 24 Feb 2008, 06:59
Has thanked: 462 times
Have thanks: 577 times

Re: Tubeworks - BlueTube (guts)

Postby soulsonic » 14 Mar 2008, 05:58

Nice.
It appears to be almost exactly the same circuit as the TW303 I put up earlier today. You could use the TW303 schematic as a guide and fill in the blanks where the values are different. I'm assuming that majority of the value differences will be in the tube section and tone controls. The rest of it is pretty much just buffers. There might be a difference in how much gain is available in the opamp stage right before the tube, but that would most likely be affected by either the value of the pot used for the Gain control or the values of the padding resistors in series with the signal after that stage.
The plate load resistors look like they are probably the same value - 68K - but maybe different cathode resistor?
It will be nice when we can have the complete set of all the different Tube Driver pedals traced out... especially since they aren't made anymore (except for the six B.K. Butler builds personally each week!).

I have the factory schematic for the rackmount model 913. When I get it redrawn, I will put it up too. It is yet a different variation with a crazy positive ground power supply.
User avatar
soulsonic
Old Solderhand

Posts: 3530
Joined: 27 Jun 2007, 04:38
Location: Buffalo, NY
Has thanked: 56 times
Have thanks: 268 times

Re: Tubeworks - BlueTube (guts)

Postby culturejam » 14 Mar 2008, 06:26

SoulSonic, you inspired me to post the guts!

I also have a TubeWorks 100w head (which is tube pre-amp and SS power amp), so if you think that might help, I can post some shots of that as well.
User avatar
culturejam
Old Solderhand

Posts: 4262
Joined: 24 Feb 2008, 06:59
Has thanked: 462 times
Have thanks: 577 times

Re: Tubeworks - BlueTube (guts)

Postby bajaman » 14 Mar 2008, 07:42

Thanks guys - I have a bad photocopy on fax paper of a Tube Works amplifier somewhere - I will dig it up and try and pretty it up - have you seen what B K Butler has been doing with car audio recently???
Google search for Tube Driver Blue.
cheers
Steve
be kind to all animals - especially human beings
User avatar
bajaman
Old Solderhand

Posts: 4263
Joined: 26 Jun 2007, 22:18
Location: New Brighton, Christchurch, NZ
Has thanked: 412 times
Have thanks: 1400 times

Re: Tubeworks - BlueTube (guts)

Postby MillsApparatus » 04 Jan 2009, 21:50

Bumping this in case it somehow leads to the verified schem I wanted when I posted my thread. I just emailed "pesocaster" who might come through with the factory schem at some point in the future, fingers crossed on that.
MillsApparatus

Posts: 23
Joined: 09 Dec 2008, 01:10
Has thanked: 0 time
Have thanks: 1 time
