Hello lads,

Just came across a clip of this and I like what I hear. It's silicon and Bender-ish and that's about all I could find. Enclosed are two gut shots, sadly without visible what transistors are used and no shots of the trace side.

you can see more gut shots at 1:34-1:45 and 2:23-2:31 min

with several gut shots. The most important one (the PCB) is in view from 1:40-1:58 min.

Does anybody have more information ?

Thank you ! :thumbsup

Cub
Attachments
I wish I were a chestnut tree, nourished by the sun.
With twigs and leaves and branches and conkers by the ton.

User avatar
rbstep
Breadboard Brother
Information
Posts: 88
Joined: 17 Apr 2008, 18:26
Location: Riviera Beach, Florida USA
Has thanked: 88 times
Been thanked: 8 times

Post by rbstep »

Try--basicaudio.net----for more info and prices....

User avatar
Barcode
Diode Debunker
Information
Posts: 820
Joined: 27 Sep 2007, 17:03
Has thanked: 14 times
Been thanked: 32 times

Post by Barcode »

rbstep wrote:Try--basicaudio.net----for more info and prices....
John Lyons (Basic Audio) is a member here. Just PM him, I don't think he's all that secretive...

User avatar
Cub
Cap Cooler
Information
Posts: 458
Joined: 29 Aug 2011, 07:14
Location: The Netherlands
Has thanked: 102 times
Been thanked: 118 times

Post by Cub »

Barcode wrote:John Lyons (Basic Audio) is a member here. Just PM him, I don't think he's all that secretive...
Thank you, I had no idea he was a member here ! I dropped him a PM, I hope I will get a reply.

Until then, here's a link to one of the coolest pedal demonstrations ever to hit YouTube:
I wish I were a chestnut tree, nourished by the sun.
With twigs and leaves and branches and conkers by the ton.

User avatar
Cub
Cap Cooler
Information
Posts: 458
Joined: 29 Aug 2011, 07:14
Location: The Netherlands
Has thanked: 102 times
Been thanked: 118 times

Post by Cub »

Cub wrote:
Barcode wrote:John Lyons (Basic Audio) is a member here. Just PM him, I don't think he's all that secretive...
Thank you, I had no idea he was a member here ! I dropped him a PM, I hope I will get a reply.
No reply from John yet, but I've done a little digging and I think there might be a possibility that he got the inspiration for his Scarab and Scarab Deluxe from pedals with schematics similar to the ones posted in the Silicon Tone Bender thread:
viewtopic.php?f=13&t=7767

What do you lads think ?
I wish I were a chestnut tree, nourished by the sun.
With twigs and leaves and branches and conkers by the ton.

User avatar
bigmufffuzzwizz
Breadboard Brother
Information
Posts: 131
Joined: 04 Mar 2011, 21:42
my favorite amplifier: 1973 Sunn Model T
Has thanked: 3 times
Been thanked: 2 times

Post by bigmufffuzzwizz »

That pedal demo is really awesome! So many classic fuzz tones are being achieved. I've seen some other demos of his Scarab and I remember being quite impressed. After hearing those original demos I decided I needed to build myself a silicon tone bender fuzz (not interested in germanium at the moment) similar to John Lyons. I'd say the link John posted on the first page is a good place to start. The schem mictester posted is pretty much identical.
Magic Pedals Home of The Shrine Fuzz!

User avatar
~arph
Cap Cooler
Information
Posts: 607
Joined: 20 Sep 2007, 10:35
Has thanked: 60 times
Been thanked: 163 times

Post by ~arph »

Let's start.. here are the component values:


I've looked at three or four different gut shots for the values. (EDIT: To clarify: There are two places where to resistors are the same value left and right from the text.. This is the case with the 10k above the 100n? in the center and the 110R at the bottom center )

The values in white are educated guesses.

Most of them come from the tonebender schems on the web.
The 10n comes from the Hot Silicon. The FAT pot blends between the 10u and the 10n.
The tone cap values come from the Hot Silicon too (or mictesters :lol: )
Transistors probably 2N5089 or 2N5088, diode 1N400? something.

The bias pot biases Q3 as mentioned on Johns website. So it leads me to believe Q2 and Q3 are not on the same collector resistor.

Now we need a prelliminary schematic.
In the quiet words of the virgin Mary: "Come again?"

User avatar
~arph
Cap Cooler
Information
Posts: 607
Joined: 20 Sep 2007, 10:35
Has thanked: 60 times
Been thanked: 163 times

Post by ~arph »

Ok, here is what I came up with. Please let me know what you think. This is after all a guess.


There are still some values missing/wrong
In the quiet words of the virgin Mary: "Come again?"

User avatar
bigmufffuzzwizz
Breadboard Brother
Information
Posts: 131
Joined: 04 Mar 2011, 21:42
my favorite amplifier: 1973 Sunn Model T
Has thanked: 3 times
Been thanked: 2 times

Post by bigmufffuzzwizz »

Nice one arph! That looks pretty close to what I was thinking, just a few changed values. Is there a reason you switched the order of the 2K2/8.2n side of the tone pot?
Magic Pedals Home of The Shrine Fuzz!

User avatar
~arph
Cap Cooler
Information
Posts: 607
Joined: 20 Sep 2007, 10:35
Has thanked: 60 times
Been thanked: 163 times

Post by ~arph »

The order of those two does not matter to the sound. They were ordered that way on the schematic I used to create the one above. If you look at the gutshots it appears that they are the other way around so they should be switched. I was too lazy to do that... as it is not 100% accurate yet anyway.
In the quiet words of the virgin Mary: "Come again?"

User avatar
roseblood11
Tube Twister
Information
Posts: 1886
Joined: 23 Aug 2008, 14:21
Has thanked: 366 times
Been thanked: 313 times

Post by roseblood11 »

I'd really like to know if that schematic is correct...
John, will you enlighten us?

User avatar
John Lyons
Solder Soldier
Information
Posts: 191
Joined: 18 Aug 2007, 03:09
Location: West Virginia
Has thanked: 5 times
Been thanked: 30 times

Post by John Lyons »

Fairly close.
Remove R9
Remove the 750 in series with +9v
Put 1k in series with the Bias Pot (25K)
R5 is 1k
C4 is 100uf
FAT is 100k
1K off FUZZ pot is 750 ohms
C7 is .1
Q3 emitter goes to .1 then to the high side of the tone pot.
Split off the same .1 is 10k to the low side of the pot and
a .1 to 2k2 to ground. (Low pass only, shelved at that)

I started with the Hot Silicon as a base. Mic Testers schematic (which is the same) :scratch:
was not on line at that time (for a few years actually)

User avatar
iq01221
Solder Soldier
Information
Posts: 205
Joined: 18 Jun 2011, 16:17
Has thanked: 31 times
Been thanked: 8 times

Post by iq01221 »

I'm not a fuzz pedals lover, but this one!! :thumbsup And I really enjoy the demos!!

User avatar
roseblood11
Tube Twister
Information
Posts: 1886
Joined: 23 Aug 2008, 14:21
Has thanked: 366 times
Been thanked: 313 times

Post by roseblood11 »

Many thanks, John!!! :popcorn:
I haven't built a fuzz over the last two years, because I've got more than enough, but I'll dfinitely build this...

User avatar
storyboardist
Breadboard Brother
Information
Posts: 104
Joined: 28 Dec 2013, 00:08
Location: Georgia, USA
Has thanked: 85 times
Been thanked: 225 times
Contact:

Post by storyboardist »

So would this schematic be correct?


User avatar
roseblood11
Tube Twister
Information
Posts: 1886
Joined: 23 Aug 2008, 14:21
Has thanked: 366 times
Been thanked: 313 times

Post by roseblood11 »

No, if I get it right:
John Lyons wrote:Q3 emitter goes to .1 then to the high side of the tone pot.
Split off the same .1 is 10k to the low side of the pot and
a .1 to 2k2 to ground. (Low pass only, shelved at that)

User avatar
storyboardist
Breadboard Brother
Information
Posts: 104
Joined: 28 Dec 2013, 00:08
Location: Georgia, USA
Has thanked: 85 times
Been thanked: 225 times
Contact:

Post by storyboardist »

Yeah, that part confused me. But his description of the tone circuit made me think he may have meant Q4? :?
roseblood11 wrote:No, if I get it right:
John Lyons wrote:Q3 emitter goes to .1 then to the high side of the tone pot.
Split off the same .1 is 10k to the low side of the pot and
a .1 to 2k2 to ground. (Low pass only, shelved at that)

User avatar
IvIark
Tube Twister
Information
Posts: 2235
Joined: 01 Jan 2008, 23:59
Location: Manchester UK
Has thanked: 562 times
Been thanked: 586 times
Contact:

Post by IvIark »

storyboardist wrote:Yeah, that part confused me. But his description of the tone circuit made me think he may have meant Q4? :?
Yes that's the way I interpreted it too. But John said the 100n goes to the high side and then a 10K down to the low side which to me sounds like the 100n from the emitter goes to the 10K/100n junction rather than as it is in the updated schematic going to the low side of the pot.
John Lyons wrote:Q3 emitter goes to .1 then to the high side of the tone pot.
Split off the same .1 is 10k to the low side of the pot and
a .1 to 2k2 to ground. (Low pass only, shelved at that)
"If anyone is a 'genius' for putting jacks in such a pedal in the only spot where they could physically fit, then I assume I too am a genius for correctly inserting my legs into my pants this morning." - candletears7 - TGP

User avatar
storyboardist
Breadboard Brother
Information
Posts: 104
Joined: 28 Dec 2013, 00:08
Location: Georgia, USA
Has thanked: 85 times
Been thanked: 225 times
Contact:

Post by storyboardist »

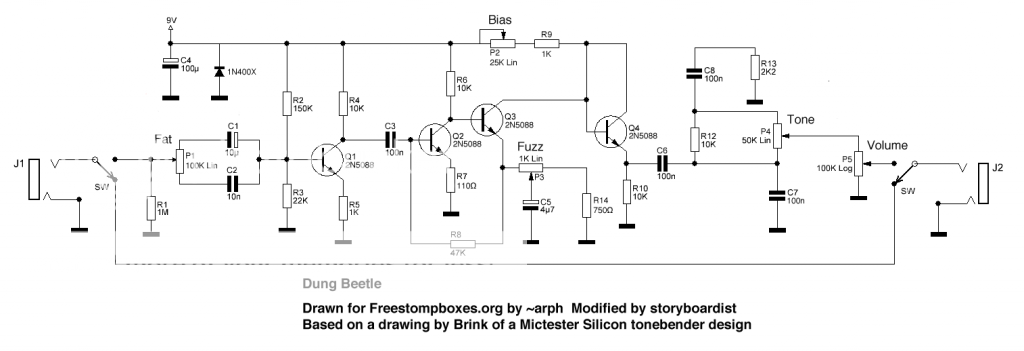

Ah, so like this:


User avatar
IvIark
Tube Twister
Information
Posts: 2235
Joined: 01 Jan 2008, 23:59
Location: Manchester UK
Has thanked: 562 times
Been thanked: 586 times
Contact:

Post by IvIark »

storyboardist wrote:Ah, so like this:

[ Image ]
Yes that looks like the way John described it, or at least that's how I understood it.
"If anyone is a 'genius' for putting jacks in such a pedal in the only spot where they could physically fit, then I assume I too am a genius for correctly inserting my legs into my pants this morning." - candletears7 - TGP
