Re: Amptweaker - Tight Metal

Postby brejna » 25 Apr 2014, 00:13

I don't have supply for good 3PDT switches here in EU, so that is reason why I am starting to use relays. I am using takamisawa at the moment and didn't have any problems.
brejna
Breadboard Brother

Posts: 88
Joined: 25 Nov 2012, 18:14
Has thanked: 53 times
Have thanks: 51 times

Re: Amptweaker - Tight Metal

Postby J0K3RX » 25 Apr 2014, 02:41

brejna wrote:I don't have supply for good 3PDT switches here in EU, so that is reason why I am starting to use relays. I am using takamisawa at the moment and didn't have any problems.


Yeah, when I say I dropped it I mean I really dropped it, hard! Bout 6ft to be exact from a shelf right onto the concrete garage floor... I doubt most pedals are gonna see that kind of fall so, probably not an issue... I would like to get out my PIC programmer and make a soft touch momentary switch but it's been years since I programmed with it and I would have to learn it all over again... Not enough time in the day.
User avatar
J0K3RX
Degoop Doctor

Posts: 899
Joined: 29 Jun 2011, 02:25
Location: US Florida
Has thanked: 247 times
Have thanks: 344 times

Re: Amptweaker - Tight Metal

Postby brejna » 25 Apr 2014, 10:11

J0K3RX wrote:
brejna wrote:I don't have supply for good 3PDT switches here in EU, so that is reason why I am starting to use relays. I am using takamisawa at the moment and didn't have any problems.


Yeah, when I say I dropped it I mean I really dropped it, hard! Bout 6ft to be exact from a shelf right onto the concrete garage floor... I doubt most pedals are gonna see that kind of fall so, probably not an issue... I would like to get out my PIC programmer and make a soft touch momentary switch but it's been years since I programmed with it and I would have to learn it all over again... Not enough time in the day.


Oh I understand why relay stoped working :D
I am not programming PICs, I buy them programmed at the moment. But I am thinking of getting arduino one and try it by my self :D
brejna
Breadboard Brother

Posts: 88
Joined: 25 Nov 2012, 18:14
Has thanked: 53 times
Have thanks: 51 times

Re: Amptweaker - Tight Metal

Postby Nicht Bernd » 25 Apr 2014, 10:50

brejna wrote:I don't have supply for good 3PDT switches here in EU, so that is reason why I am starting to use relays. I am using takamisawa at the moment and didn't have any problems.


http://www.musikding.de/
http://www.uk-electronic.de/onlineshop/index.php/
Nicht Bernd
Breadboard Brother

Posts: 73
Joined: 26 May 2010, 12:08
Has thanked: 91 times
Have thanks: 5 times

Re: Amptweaker - Tight Metal

Postby brejna » 25 Apr 2014, 11:08

Nicht Bernd wrote:
brejna wrote:I don't have supply for good 3PDT switches here in EU, so that is reason why I am starting to use relays. I am using takamisawa at the moment and didn't have any problems.


http://www.musikding.de/
http://www.uk-electronic.de/onlineshop/index.php/


Thanks for info. I am using currently musikding, but I just don't believe to those 3DPTs anymore..
brejna
Breadboard Brother

Posts: 88
Joined: 25 Nov 2012, 18:14
Has thanked: 53 times
Have thanks: 51 times

Re: Amptweaker - Tight Metal

Postby grrrunge » 28 Apr 2014, 18:56

brejna wrote:I don't have supply for good 3PDT switches here in EU, so that is reason why I am starting to use relays. I am using takamisawa at the moment and didn't have any problems.

Tayda Electronics ;) 3PDT switches are $2.99 a' pop, and they've got cheap shipping to EU. usually between $3 and $5 shipping for $15 worth of parts...
A true believer in the magic of Sherwood Forest Pedal Pirates
---
New base of operations: http://www.knucklehead.dk
User avatar
grrrunge
Diode Debunker

Posts: 735
Joined: 20 Mar 2010, 11:51
Location: Copenhagen, Denmark
Has thanked: 56 times
Have thanks: 193 times

Re: Amptweaker - Tight Metal

Postby brejna » 28 Apr 2014, 23:32

grrrunge wrote:
brejna wrote:I don't have supply for good 3PDT switches here in EU, so that is reason why I am starting to use relays. I am using takamisawa at the moment and didn't have any problems.

Tayda Electronics ;) 3PDT switches are $2.99 a' pop, and they've got cheap shipping to EU. usually between $3 and $5 shipping for $15 worth of parts...


Thanks, I just ordered some stuff from them.
brejna
Breadboard Brother

Posts: 88
Joined: 25 Nov 2012, 18:14
Has thanked: 53 times
Have thanks: 51 times

Re: Amptweaker - Tight Metal

Postby Nicht Bernd » 16 May 2014, 18:10

@ brejna

Checked the pdf and saw a 4PDT in your partlist.
Is this correct? :scratch:
Could I do it with a 3PTD this way?
https://app.box.com/s/n0pmsle75rngzdofi9yv

Allso the gain switch. Isn´t it a SPDT?

Want to order the parts.
Thanks for that awsome work!
Nicht Bernd
Breadboard Brother

Posts: 73
Joined: 26 May 2010, 12:08
Has thanked: 91 times
Have thanks: 5 times

Re: Amptweaker - Tight Metal

Postby brejna » 17 May 2014, 00:21

Nicht Bernd wrote:@ brejna

Checked the pdf and saw a 4PDT in your partlist.
Is this correct? :scratch:
Could I do it with a 3PTD this way?
https://app.box.com/s/n0pmsle75rngzdofi9yv

Allso the gain switch. Isn´t it a SPDT?

Want to order the parts.
Thanks for that awsome work!

Unfortunately it is 4pdt, you can use 3pdt but without LEDs. Gain pot is meant to be changed with that 4pdt and be carefull with the wiring, all square dots should be on the one side of switch.
Thanks for kind words and credits go JOK3RX, I just did layout :)

For this message the author brejna has received thanks:
J0K3RX (17 May 2014, 02:13)
brejna
Breadboard Brother

Posts: 88
Joined: 25 Nov 2012, 18:14
Has thanked: 53 times
Have thanks: 51 times

Re: Amptweaker - Tight Metal

Postby GodSaveMetal » 17 May 2014, 01:23

Mr Brejna please post the external connections with the 4pdt and others jacks, of the Double Tight Dragon thanks man!!!

For this message the author GodSaveMetal has received thanks:
J0K3RX (17 May 2014, 02:12)
GodSaveMetal
Resistor Ronker

Posts: 301
Joined: 19 Sep 2009, 17:11
Has thanked: 142 times
Have thanks: 50 times

Re: Amptweaker - Tight Metal

Postby J0K3RX » 17 May 2014, 02:12

Brejna - If you build this please post a video demo of it!!
User avatar
J0K3RX
Degoop Doctor

Posts: 899
Joined: 29 Jun 2011, 02:25
Location: US Florida
Has thanked: 247 times
Have thanks: 344 times

Re: Amptweaker - Tight Metal

Postby brejna » 17 May 2014, 14:53

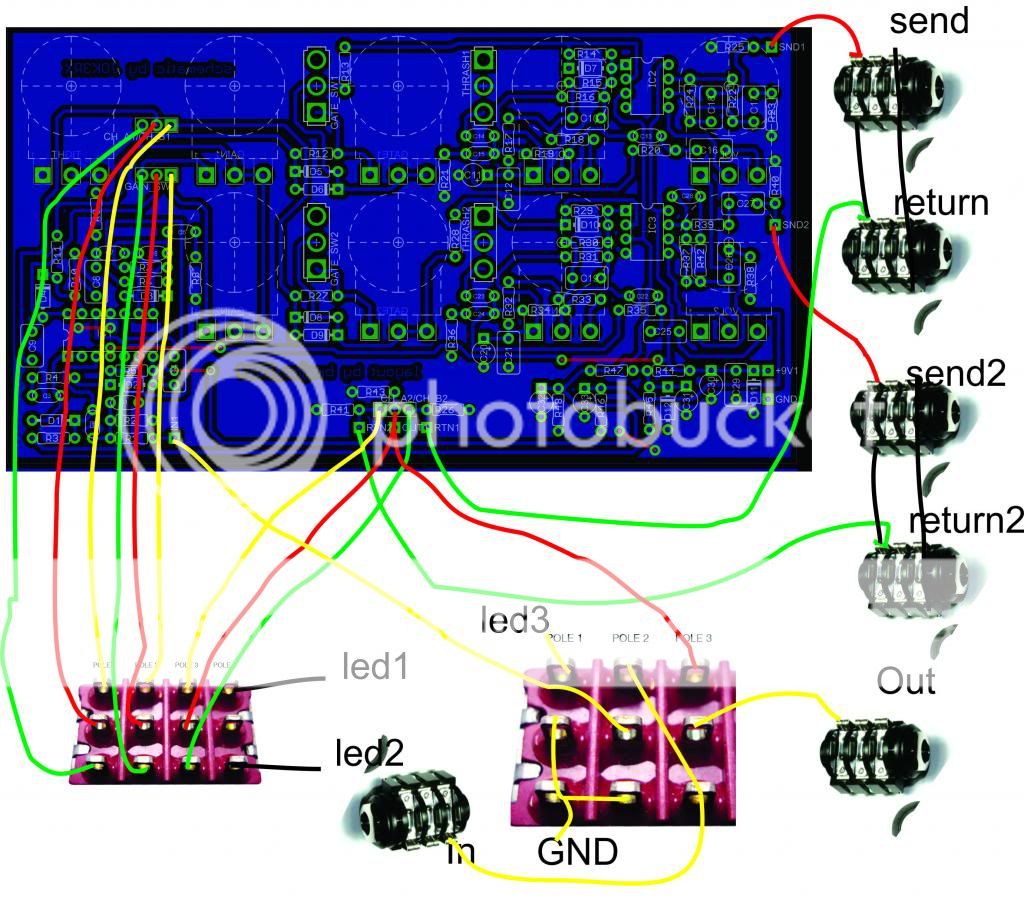

GodSaveMetal wrote:Mr Brejna please post the external connections with the 4pdt and others jacks, of the Double Tight Dragon thanks man!!!

Here it is :)

For this message the author brejna has received thanks: 2
J0K3RX (17 May 2014, 15:00), Nicht Bernd (17 May 2014, 16:02)
brejna
Breadboard Brother

Posts: 88
Joined: 25 Nov 2012, 18:14
Has thanked: 53 times
Have thanks: 51 times

Re: Amptweaker - Tight Metal

Postby brejna » 17 May 2014, 14:55

J0K3RX wrote:Brejna - If you build this please post a video demo of it!!

Offcourse, soon as build it I'll make video..

For this message the author brejna has received thanks:
J0K3RX (17 May 2014, 15:01)
brejna
Breadboard Brother

Posts: 88
Joined: 25 Nov 2012, 18:14
Has thanked: 53 times
Have thanks: 51 times

Re: Amptweaker - Tight Metal

Postby GodSaveMetal » 17 May 2014, 15:02

Thanks million thanks Mr. brejna; it´s awersome incredible!!!!
GodSaveMetal
Resistor Ronker

Posts: 301
Joined: 19 Sep 2009, 17:11
Has thanked: 142 times
Have thanks: 50 times

Re: Amptweaker - Tight Metal

Postby J0K3RX » 17 May 2014, 15:04

A lot of room still on that board... maybe include18v voltage doubler and maybe cab sim?
User avatar
J0K3RX
Degoop Doctor

Posts: 899
Joined: 29 Jun 2011, 02:25
Location: US Florida
Has thanked: 247 times
Have thanks: 344 times

Re: Amptweaker - Tight Metal

Postby brejna » 17 May 2014, 15:05

GodSaveMetal wrote:Thanks million thanks Mr. brejna; it´s awersome incredible!!!!

You are welcome, just post few pics of your build if it's not pain in the ass :)
brejna
Breadboard Brother

Posts: 88
Joined: 25 Nov 2012, 18:14
Has thanked: 53 times
Have thanks: 51 times

Re: Amptweaker - Tight Metal

Postby brejna » 17 May 2014, 15:07

J0K3RX wrote:A lot of room still on that board... maybe include18v voltage doubler and maybe cab sim?

I could do that, if you have good sim-cab schematic send me and I'll add it along with voltage doubler
brejna
Breadboard Brother

Posts: 88
Joined: 25 Nov 2012, 18:14
Has thanked: 53 times
Have thanks: 51 times

Re: Amptweaker - Tight Metal

Postby J0K3RX » 17 May 2014, 18:20

brejna wrote:
J0K3RX wrote:A lot of room still on that board... maybe include18v voltage doubler and maybe cab sim?

I could do that, if you have good sim-cab schematic send me and I'll add it along with voltage doubler
You do not have the required permissions to view the files attached to this post.

For this message the author J0K3RX has received thanks:
brejna (17 May 2014, 19:14)
User avatar
J0K3RX
Degoop Doctor

Posts: 899
Joined: 29 Jun 2011, 02:25
Location: US Florida
Has thanked: 247 times
Have thanks: 344 times

Re: Amptweaker - Плотный Металл

Postby J0K3RX » 20 May 2014, 23:51

Darksid46 wrote:Мой SPSim12\0LionSound+E530JFET http://www.youtube.com/watch?v=VDa3uOqrerc



I like it! Schematic? Layout?
User avatar
J0K3RX
Degoop Doctor

Posts: 899
Joined: 29 Jun 2011, 02:25
Location: US Florida
Has thanked: 247 times
Have thanks: 344 times

Re: Amptweaker - Плотный Металл

Postby ggedamed » 21 May 2014, 09:52

Darksid46 wrote:Мой SPSim12\0LionSound+E530JFET http://www.youtube.com/watch?v=VDa3uOqrerc


Is it related to the Tight Metal or to the AMT L1 Series?
User avatar
ggedamed
Resistor Ronker

Posts: 319
Joined: 21 Jun 2009, 12:43
Location: Bucharest, Romania
Has thanked: 138 times
Have thanks: 141 times
