Postby disorder » 14 Oct 2008, 07:05

http://www.telenordia.de/en/products_ta_100.php

I'm wondering what's in this Germanium OD... Mr. Ryan Adams has been seen using one recently.
disorder
Breadboard Brother

Posts: 99
Joined: 10 Apr 2008, 06:56
Has thanked: 1 time
Have thanks: 1 time

Re: Telenordia TA-100 anyone?

Postby PurplePeopleEater » 14 Oct 2008, 16:25

Nothing that I can find on the TA-100, but there is a thread on the TK-23 . That might help a little, not sure.

http://www.freestompboxes.org/viewtopic ... telenordia


:hmmm:
PurplePeopleEater
Resistor Ronker

Posts: 336
Joined: 28 Nov 2007, 02:58
Has thanked: 0 time
Have thanks: 2 times

Re: Telenordia - TA-100

Postby disorder » 18 Oct 2008, 15:14

This is one of those pedals I would definitely purchase if I had the money. It seems to be an original design and if it pleases Ryan Adams ears I could only imagine it sounds great. I play a similar amp to him, BF Princeton Reverb clone, too.

Help me out!
disorder
Breadboard Brother

Posts: 99
Joined: 10 Apr 2008, 06:56
Has thanked: 1 time
Have thanks: 1 time

Re: Telenordia - TA-100

Postby MoreCowbell » 18 Oct 2008, 18:06

disorder wrote:Help me out!



Typically if a post goes more than a few days without any real replies, there is no help to be given, unfortunately. When people at this forum have info, they are usually quick to share it.

Which means you get to buy one and post pictures. :D

PS: Welcome to the forum !
MoreCowbell
Transistor Tuner

Posts: 1107
Joined: 06 Aug 2007, 15:39
Has thanked: 0 time
Have thanks: 11 times

Re: Telenordia - TA-100

Postby RnFR » 14 May 2010, 22:27

the treble booster, booster, overdrive, and compressor all sound very similar from the clips posted. i wouldn't be surprised if they were closely related.
"You've converted me to Cubic thinking. Where do I sign up for the newsletter? I need to learn more about how I can break free from ONEism Death Math." - Soulsonic

Blog-APOCALYPSE AUDIO
User avatar
RnFR
Old Solderhand

Posts: 5136
Joined: 09 Jan 2008, 07:02
Location: Inner Earth
Has thanked: 138 times
Have thanks: 170 times

Re: Telenordia - TA-100

Postby horiehan » 20 Nov 2011, 16:12

Gut shot on the official site.
http://www.tortenmann.de/ta-100.php?bl=ta-100&bl1=ta-100&sel=pix&pic=inside

Does anyone have it?
horiehan

Posts: 10
Joined: 26 Aug 2007, 07:33
Has thanked: 1 time
Have thanks: 2 times

Re: Telenordia - TA-100

Postby horiehan » 20 Nov 2011, 16:33

horiehan

Posts: 10
Joined: 26 Aug 2007, 07:33
Has thanked: 1 time
Have thanks: 2 times

Re: Telenordia - TA-100

Postby KindaFuzzy » 20 Nov 2011, 16:48

There's one for sale on TGP right now http://www.thegearpage.net/board/showthread.php?t=987025&highlight=telenordia. From the guts, the first tranny is a buffer exactly like the tremolo, then there's some clipping diodes, and two more trannies, so my guess is one is a rangemaster, then some clippers to ground with a crude tone control and either another buffer or boost stage.
User avatar
KindaFuzzy
Degoop Doctor

Posts: 646
Joined: 10 Nov 2008, 15:00
Location: Canada
Has thanked: 104 times
Have thanks: 296 times

Re: Telenordia - TA-100

Postby horiehan » 21 Nov 2011, 02:12

Thanks, KindaFuzzy.
As you say, it seems the values of resistors say there's two Rangemaster.
I'll make it on breadboards.
horiehan

Posts: 10
Joined: 26 Aug 2007, 07:33
Has thanked: 1 time
Have thanks: 2 times

Re: Telenordia - TA-100

Postby Bernardduur » 21 Nov 2011, 10:54



Aren't those DC jacks non isolated???? Then it must be a pos ground pedal!
'No more....... loud music.......'
Bernardduur
Transistor Tuner

Posts: 1140
Joined: 24 Aug 2007, 08:36
Location: Losser.........
Has thanked: 85 times
Have thanks: 464 times

Re: Telenordia - TA-100

Postby horiehan » 13 Dec 2011, 16:27

I built a one, sound is close to TA-100 on youtube.
Knobs work little differently, however.
I drew a schematic below based on KindaFuzzy's TT3 schematic and Rangemaster.

https://www.sugarsync.com/pf/D6628808_96_6363197114

Let me hear your opinions or thoughts if you have.

For this message the author horiehan has received thanks: 2
Bernardduur (13 Dec 2011, 19:59), KindaFuzzy (13 Dec 2011, 21:55)
horiehan

Posts: 10
Joined: 26 Aug 2007, 07:33
Has thanked: 1 time
Have thanks: 2 times

Re: Telenordia - TA-100

Postby Bernardduur » 13 Dec 2011, 19:59

Cool schematic!
'No more....... loud music.......'
Bernardduur
Transistor Tuner

Posts: 1140
Joined: 24 Aug 2007, 08:36
Location: Losser.........
Has thanked: 85 times
Have thanks: 464 times

Re: Telenordia - TA-100

Postby KindaFuzzy » 13 Feb 2012, 02:35

There's another one for sale, too rich for my blood, but I'm trying to see if I can get a trace side photo. http://www.thegearpage.net/board/showthread.php?t=1032091&highlight=Telenordia
User avatar
KindaFuzzy
Degoop Doctor

Posts: 646
Joined: 10 Nov 2008, 15:00
Location: Canada
Has thanked: 104 times
Have thanks: 296 times

Re: Telenordia - TA-100

Postby mmolteratx » 18 Oct 2014, 05:11

Accidentally broke the drive pot on mine and opened it up to repair tonight. Figured I should probably reverse it while it was open. Build quality is great, but TBH, it sounds like complete ass with the drive knob above 3 o clock or so, and it doesn't have much gain below that. Not worth the new price, or even the average used price honestly. Only got it because I took it in on a trade. Q1 is unknown. It's in a flanged package like the AC128s, so it's a germanium, but it isn't labeled, and an NPN would make more sense in that position based on the values, IMO.

For this message the author mmolteratx has received thanks:
Nocentelli (18 Oct 2014, 07:32)
mmolteratx
Degoop Doctor

Posts: 510
Joined: 19 Dec 2009, 02:50
Has thanked: 103 times
Have thanks: 621 times

Re: Telenordia - TA-100

Postby deltafred » 18 Oct 2014, 09:58

mmolteratx wrote:Q1 is unknown. It's in a flanged package like the AC128s, so it's a germanium, but it isn't labeled, and an NPN would make more sense in that position based on the values, IMO.

Based on the voltages I would say it was a PNP, 200mV is consistent with it being germanium PNP.

If it were NPN a VBE of 5V is way too high.
Politics is the art of so plucking the goose as to obtain the most feathers with the least squawking. - R.G. 2011
Jeez, she's an ugly bastard, she makes my socks hurt. I hope it's no ones missus here. - Ice-9 2012
User avatar
deltafred
Opamp Operator

Posts: 1368
Joined: 06 Apr 2010, 17:16
Location: Yorkshire, England, UK
Has thanked: 286 times
Have thanks: 234 times

Re: Telenordia - TA-100

Postby tube-exorcist » 18 Oct 2014, 11:24

I am missing (at least) a capacitor between C7 and R12/13.... just saying.
"I've noticed there's an inverse relationship between cost of gear and talent. If you need the most expensive gear to get decent tones, then you suck as a player."
tube-exorcist
Cap Cooler

Posts: 463
Joined: 05 Jul 2007, 21:09
Has thanked: 210 times
Have thanks: 75 times

Re: Telenordia - TA-100  [traced]

Postby mmolteratx » 18 Oct 2014, 17:45

deltafred wrote:
mmolteratx wrote:Q1 is unknown. It's in a flanged package like the AC128s, so it's a germanium, but it isn't labeled, and an NPN would make more sense in that position based on the values, IMO.

Based on the voltages I would say it was a PNP, 200mV is consistent with it being germanium PNP.

If it were NPN a VBE of 5V is way too high.


:thumbsup

You're right. Fixed.

tube-exorcist wrote:I am missing (at least) a capacitor between C7 and R12/13.... just saying.


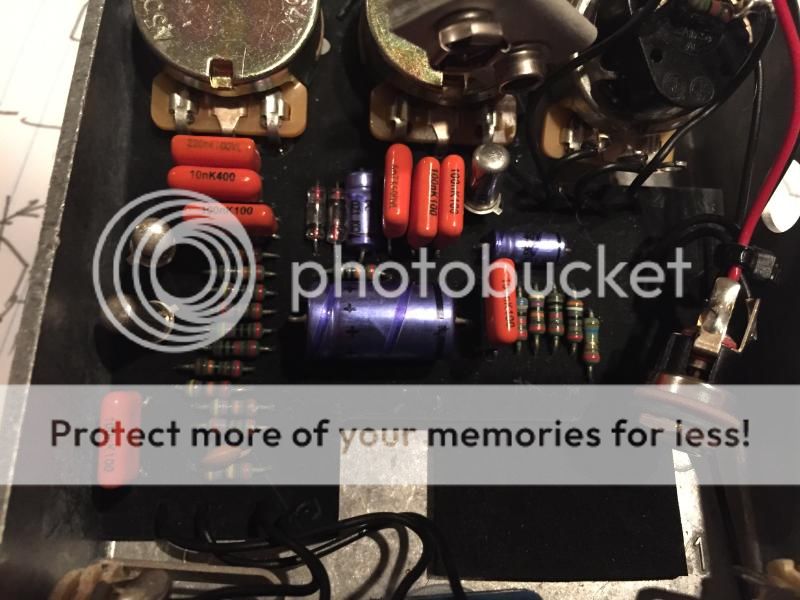

D'oh. Dunno how I missed that one. Also fixed. Had it on my hand drawn copy and it didn't make its way to the electronic one. Here are pics of the top/bottom.

You do not have the required permissions to view the files attached to this post.

For this message the author mmolteratx has received thanks: 6
Bernardduur (20 Oct 2014, 19:08), deep_intruder (22 Oct 2014, 18:16), horiehan (01 Nov 2014, 09:12), KindaFuzzy (19 Oct 2014, 00:58), LaceSensor (22 Oct 2014, 22:32), modman (18 Oct 2014, 19:53)
mmolteratx
Degoop Doctor

Posts: 510
Joined: 19 Dec 2009, 02:50
Has thanked: 103 times
Have thanks: 621 times

Re: Telenordia - TA-100

Postby HamishR » 12 Jul 2017, 10:25

Old thread I know, but if it helps I have TA-100 #103 in front of me right now and all three trannies are AC128. Does anyone want me to look at anything else? It's a very good sounding light overdrive. Not mine, so I can't pull it apart! But any other info I can provide let me know.

For this message the author HamishR has received thanks:
Manfred (13 Jul 2017, 04:15)
HamishR

Posts: 19
Joined: 31 May 2016, 15:51
Has thanked: 0 time
Have thanks: 4 times

Re: Telenordia - TA-100

Postby POTL » 07 Sep 2017, 00:36

Hi This is an inverted circuit, for working from conventional power supplies with negative ground.
Do I understand correctly that I can deploy any scheme of old germanium PNP fuzzes and boosts from a conventional power supply with negative ground?
For example, rangemaster or Fuzz Face, as Zvex did in Fuzz Factory?
POTL
Solder Soldier

Posts: 194
Joined: 26 Sep 2016, 04:11
Has thanked: 41 times
Have thanks: 43 times
